Birmingham Transformers Panel Mounting range

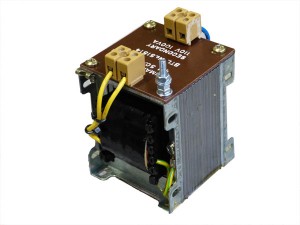

Vertical panel mounting transformer range, see list below for dimension of the transformers that we can supply:The availability of this range of transformers is normally 2-3 working days.
Contact sales@birminghamtransformers.co.uk
|
Rating VA
|
Width mm
|
Depth mm
|
Height mm
|
Weight kg
|
Case Ref
|
| 50 | 66 | 56 | 110 | 1.35 | P0 |
| 75 | 66 | 62 | 110 | 1.4 | P0 |
| 100 | 66 | 69 | 110 | 1.6 | P0 |
| 150 | 84 | 74 | 121 | 2.6 | P1 |
| 200 | 84 | 80 | 121 | 3.0 | P1 |
| 250 | 84 | 87 | 121 | 3.2 | P1 |
| 300 | 98 | 95 | 137 | 4.4 | P2 |
| 400 | 114 | 97 | 156 | 5.1 | P3 |
| 500 | 114 | 103 | 156 | 5.7 | P3 |
| 600 | 114 | 116 | 156 | 7.3 | P3 |
| 750 | 114 | 128 | 156 | 8.9 | P3 |
| 1000 | 140 | 125 | 196 | 10.0 | P3 |
| 1250 | 140 | 144 | 196 | 12.5 | P4 |
| 1500 | 140 | 156 | 196 | 15.5 | P4 |
| 2000 | 180 | 145 | 251 | 18.0 | P4 |
| 2500 | 180 | 158 | 251 | 21.5 | P4 |
| 3000 | 180 | 171 | 251 | 26.0 | P4 |
| 3500 | 180 | 183 | 251 | 30.5 | P5 |
| 4000 | 180 | 198 | 251 | 32.0 | P5 |
| 4500 | 180 | 210 | 251 | 33.0 | P5 |
| 5000 | 180 | 221 | 251 | 36.0 | P5 |
|
Rating VA
|
Width mm
|
Depth mm
|
Height mm |
Weight kg
|
Case Ref
|
Whilst every attempt is made to ensure that the information displayed is accurate and up to date, all information should be taken as guidance only and confirmed data sought at time of order.
